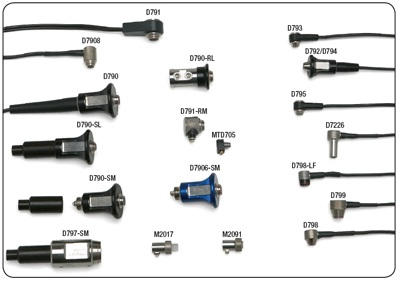

Gage Dual Transducers
|
Transducer
Part #
|
Freq.
|
Tip Diameter
|
Connector
|
Range in Steel
|
Temp Range
|
|
|
MHz
|
in.
|
mm
|
Type
|
Location
|
in
|
mm
|
°F
|
°C
|
|
D790
|
5.0
|
0.434
|
11
|
Potted
|
Straight
|
0.040 - 20
|
1.0 - 508
|
-5 to 932
|
-20 to 500
|
|
D790-SM
|
5.0
|
0.434
|
11
|
Microdot®
|
Straight
|
0.040 - 20
|
1.0 - 508
|
-5 to 932
|
-20 to 500
|
|
D790-SL
|
5.0
|
0.434
|
11
|
Lemo®
|
Straight
|
0.040 - 20
|
1.0 - 508
|
-5 to 932
|
-20 to 500
|
|
D790-RL
|
5.0
|
0.434
|
11
|
Lemo
|
Rt Angle
|
0.040 - 20
|
1.0 - 508
|
-5 to 932
|
-20 to 500
|
|
D791
|
5.0
|
0.434
|
11
|
Potted
|
Rt Angle
|
0.040 - 20
|
1.0 - 508
|
-5 to 932
|
-20 to 500
|
|
D791-RM
|
5.0
|
0.434
|
11
|
Microdot
|
Rt Angle
|
0.040 - 20
|
1.0 - 508
|
-5 to 752
|
-20 to 400
|
|
D792
|
10
|
0.283
|
7.2
|
Potted
|
Straight
|
0.020 - 1
|
0.5 - 25
|
32 to 122
|
0 to 50
|
|
D793
|
10
|
0.283
|
7.2
|
Potted
|
Rt Angle
|
0.020 - 1
|
0.5 - 25
|
32 to 122
|
0 to 50
|
|
D794
|
5.0
|
0.283
|
7.2
|
Potted
|
Straight
|
0.030 - 2
|
0.75 - 50
|
32 to 122
|
0 to 50
|
|
D795
|
5.0
|
0.283
|
7.2
|
Potted
|
Rt Angle
|
0.030 - 2
|
0.75 - 50
|
32 to 122
|
0 to 50
|
|
D797
|
2.0
|
0.900
|
22.9
|
Potted
|
Rt Angle
|
0.150 - 25
|
3.8 - 635
|
-5 to 752
|
-20 to 400
|
|
D797-SM
|
2.0
|
0.900
|
22.9
|
Microdot
|
Straight
|
0.150 - 25
|
3.8 - 635
|
-5 to 752
|
-20 to 400
|
|
D7226
|
7.5
|
0.350
|
8.9
|
Potted
|
Rt Angle
|
0.028 - 4
|
0.71 - 100
|
-5 to 300
|
-20 to 150
|
|
D798-LF
|
7.5
|
0.350
|
8.9
|
Potted
|
Rt Angle
|
0.028 - 4
|
0.71 - 100
|
-5 to 300
|
-20 to 150
|
|
D798
|
7.5
|
0.283
|
7.2
|
Potted
|
Rt Angle
|
0.028 - 4
|
0.71 - 100
|
-5 to 300
|
-20 to 150
|
|
D798-SM
|
7.5
|
0.283
|
7.2
|
Microdot
|
Straight
|
0.028 - 4
|
0.71 - 100
|
-5 to 300
|
-20 to 150
|
|
D799
|
5.0
|
0.434
|
11
|
Potted
|
Rt Angle
|
0.040 - 20
|
1.0 - 508
|
-5 to 300
|
-20 to 150
|
|
MTD705
|
5.0
|
0.200
|
5.1
|
Lepra/Con
|
Rt Angle
|
0.040 - 0.75
|
1.0 - 19
|
32 to 122
|
0 to 50
|
Other Thickness Gage Transducers
• For use with 37DL PLUS
|
Transducer
Part #
|
Freq.
|
Tip Diameter
|
Transducer Type
|
Connector
|
Range in Steel
|
Temp. Range
|
|
|
|
|
MHz
|
in.
|
mm
|
|
Type
|
Location
|
in
|
mm
|
°F
|
°C
|
|
V260-SM
|
15
|
0.080
|
2
|
Sonopen®
|
Microdot®
|
Straight
|
0.02 - 0.400
|
0.5 - 10
|
32 to 122
|
0 to 50
|
|
V260-RM
|
15
|
0.080
|
2
|
Sonopen
|
Microdot
|
Right Angle
|
0.02 - 0.400
|
0.5 - 10
|
32 to 122
|
0 to 50
|
|
V260-45
|
15
|
0.080
|
2
|
Sonopen
|
Microdot
|
45? Handle
|
0.02 - 0.400
|
0.5 - 10
|
32 to 122
|
0 to 50
|
|
D7906-SM*
|
5.0
|
0.434
|
11
|
Thru-Coat Dual
|
Microdot
|
Straight
|
0.040 - 2.0
|
1.0 - 50
|
32 to 122
|
0 to 50
|
|
D7908*
|
7.5
|
0.283
|
7.2
|
Thru-Coat Dual
|
Potted
|
Potted
|
0.040 - 1.5
|
0.71 - 37
|
32 to 122
|
0 to 50
|
|
M2017
|
20
|
0.250
|
6.35
|
Internal Oxide Scale
|
Microdot
|
Right Angle
|
Steel:
0.020 - 0.50
Oxide:
0.010 - 0.050
|
Steel:
0.5 - 12
Oxide:
0.25 - 1.25
|
32 to 122
|
0 to 50
|
|
M2091
|
20
|
0.250
|
6.35
|
Replaceable Delay Line Shear Wave
|
Microdot
|
Right Angle
|
Steel:
0.020 - 0.50
Oxide:
0.006 - 0.050
|
Steel:
0.5 - 12
Oxide:
0.150 - 1.25
|
32 to 122
|
0 to 50
|
|
E110-SB†
|
-
|
1.25
|
28.5
|
EMAT
|
BNC
|
Straight
|
0.080 - 5
|
2.0 - 125
|
32 to 176
|
0 to 80
|
* Compatible with MG2-XT and MG2-DL
†Adaptor required for E110 (part number 1/2XA/E110).
Gage Dual Cables
|
Cable Part Number
|
For Use With
|
Length
|
Cable Type
|
Plug Type
|
|
|
|
|
feet
|
meters
|
|
|
|
|
LCMD-316-5B
|
D790-SM
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
RLCMD-316-5B
|
D790-SM
|
5.0
|
1.5
|
Standard
|
Rt Angle
|
|
|
LCMD-178-5B SSA
|
D790-SM
|
5.0
|
1.5
|
Armored
|
Straight
|
|
|
RLCMD-178-5B SSA
|
D790-SM
|
5.0
|
1.5
|
Armored
|
Rt Angle
|
|
|
LCLD-316-5G
|
D790-RL
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCLD-316-5H
|
D790-SL
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCMD-316-5C
|
D791-RM
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCMD-316-5D
|
D797-SM
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCMD-316-5J
|
D798-SM
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCMD-316-5L
|
D7906-SM
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCLPD-78-5
|
MTD705
|
5.0
|
1.5
|
Standard
|
Straight
|
|
|
LCM-74-4
|
V260-SM, V260-RM, V260-45, M2017
|
4.0
|
1.2
|
Standard
|
-
|
|
|
|
|
LCM-188-4 SSA
|
V260-SM, V260-RM, V260-45, M2017
|
4.0
|
1.2
|
Armored
|
-
|
|
|
|
|
LCB-74-4
|
E110-SB
|
4.0
|
1.2
|
Standard
|
-
|
|
