SM9541-010C-S-C-3-S
SM9541-010C-D-C-3-S
SM9541-020C-S-C-3-S
SM9541-020C-D-C-3-S
SM9541-040C-S-C-3-S
SM9541-040C-D-C-3-S
SM9541-100C-S-C-3-S
SM9541-100C-D-C-3-S

Features
. Fully digital, pressure calibrated and temperature compensated output

. 12C Digital Interface
. Compensated temperature range: -5 to 65C
. Compound gage and differential pressure configurations
. Insensitive to mounting orientation
. Robust JEDEC SOIC-16 package for automated assembly
. Manufactured according to IS09001 and ISO/TS 16949 standards
. RoHS & REACH compliant

Description
The SM9541 Series is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 package with a dual vertical porting option. It is available in both compound gage or differential pressure configurations. With the dual porting, a vacuum-gage measurement is possible to minimize altitude errors due to changes in ambient pressure.

Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm.

The SM9541 is shipped in sticks or tape & reel

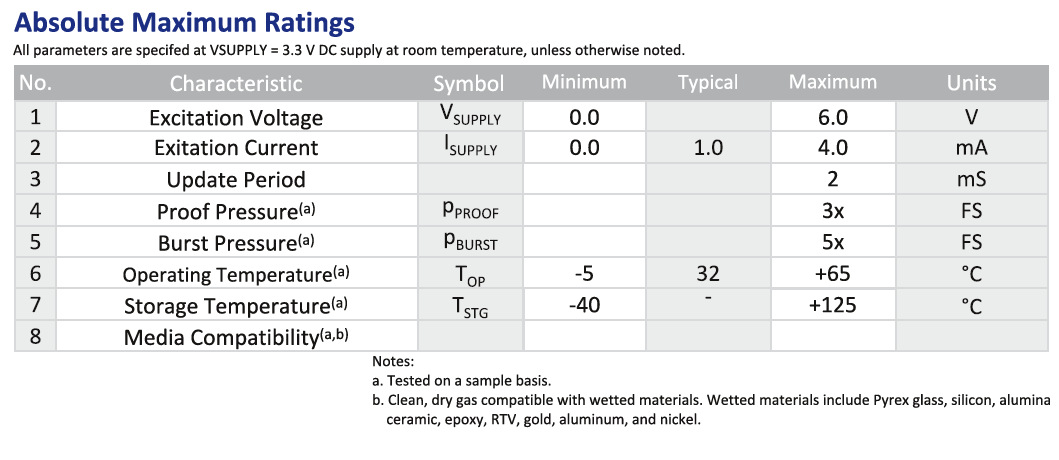

Qualification Standards
. REACH Compliant
. RoHS Compliant
. PFOS/PFOA Compliant
. Qualified to meet AEC Ql00 standards
. For qualification specifications, please contact Sales at
